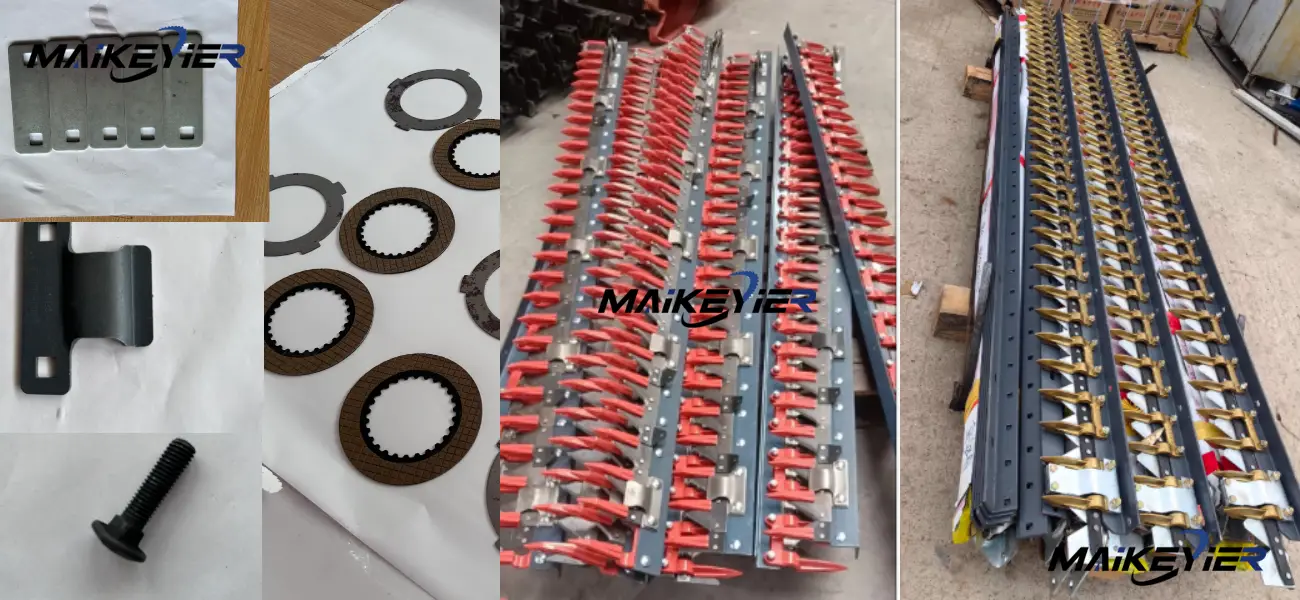

The Combine Harvester Cutter Assembly is the core working component at the very front of the header that directly completes the crop cutting operation. It is a cutting device installed at the front end of the header, consisting of moving knives, knife guards, hold-down clips, a cutter beam, and ball joint components. It is responsible for cutting the stalks of crops such as rice, wheat, and soybeans. Maikeyier specializes in supplying harvester cutter assemblies and a full range of related parts, covering mainstream brands such as Kubota, Yanmar, Lovol, and World, and supports matching by model, OEM number, or photo.
What Does the Cutter Assembly Do?
The performance of the cutter assembly directly determines whether the stubble is neat, the missed-cutting rate, and the cutting resistance.
| Function | Description |
| Cutting stalks | The moving knives reciprocate at high speed within the knife guard slots, forming a shear pair with the stationary blades to cut crop stalks |
| Guiding crop | The forward-extending finger structure of the knife guards guides the crop into the cutting zone |
| Protecting blades | Knife guards reduce direct impact between moving knives and hard objects, extending blade life |
| Maintaining cutting clearance | Hold-down clips maintain the correct clearance between moving knives and knife guards, ensuring shearing performance |
| Transmitting power | Connected to the swing arm through ball joint components, receiving reciprocating power from the header body |
Main Components of the Cutter Assembly
The cutter assembly is the main body of the entire cutting device, including the cutter beam, moving knives, knife guards, etc. Each harvester has one set of cutter assembly, and it is one of the most frequently replaced assemblies on the header.
Moving Knife / Knife Section
The moving knife is the core harvester wear part directly involved in cutting on the cutter assembly. The edge of the moving knife is sharp, and it forms a shear with the knife guard during reciprocating motion.
| Component | Quantity |
| Moving Knife | 29 pcs |
| Half Cutter Blade (I) | 1 pc |
| Half Cutter Blade (II) | 1 pc |
Knife Guard / Sickle Guard
The knife guard is the stationary cutting edge of the cutter, installed below the cutter beam. Its forward-extending finger structure guides the crop into the cutting zone. Maikeyier knife guards use 45# medium-frequency hardening and 40Cr/42CrMo carburizing and hardening processes, providing a hard surface and tough core, wear-resistant and impact-resistant.
| Type | Features | Applicable Scenario |
| Single-prong guard | Single forward-extending prong, simple structure | Standard cutter |
| Double-prong guard | Double-prong structure, better guiding effect | Mainstream harvesters |
| Extended guard | Longer forward extension, suitable for tall-stalk crops | Tall-stalk rice, wheat |
Knife Clip / Hold-Down Clip
The hold-down clip is installed above the knife guard and tightened with bolts. Its function is to limit the vertical movement of the knife bar and maintain the correct clearance between the moving knife and the knife guard.
- Maintains the correct clearance between moving knives and stationary blades
- Reduces vibration of the knife bar during high-speed reciprocation
- Prevents the blade from lifting or jamming during cutting
Cutter Beam
The cutter beam is the mounting base of the cutter, spanning the front of the header and carrying all moving knives and knife guards. The longer the cutter beam, the higher the requirements for straightness and deformation resistance. The cutter beam must remain straight; any bending or deformation will prevent the cutter bar from staying level, resulting in uneven stubble height.
- Carries moving knives, stationary blades, knife guards, and hold-down clips
- Determines the working width and overall rigidity of the header
- Maintains a straight cutting line, directly affecting stubble quality
Knife Back / Knife Bar
The knife back is the metal strip on which the moving knives are mounted. The entire row of moving knives is fixed to the knife back with rivets, forming a complete moving knife assembly.
- Transmits reciprocating driving force
- Ensures synchronous movement of the entire row of moving knives
- Requires sufficient rigidity and straightness
Transport / Crop Assistance Plate
The transport plate is installed on both sides of the front end of the header body or behind the cutter beam. It helps concentrate the crop toward the center of the header and prevents crop accumulation at the front of the cutter beam.
- Guides crop smoothly into the feed inlet
- Prevents lodged crop from wrapping around the cutter beam
- On some models, left and right parts are not interchangeable
Ball Joint / Knife Head
The ball joint component is located at one end of the cutter and is connected to the swing arm of the header body. It transmits the reciprocating motion of the swing arm to the cutter beam, driving the moving knives to perform high-speed reciprocating cutting.
| Component | Quantity |
| Knife Head | 1 pc |
| Friction Plate | 1 pc |
| Pad | 1 pc |
Fasteners and Standard Parts
A large number of standard parts are used in the cutter assembly to secure moving knives, knife guards, hold-down clips, and the cutter beam.
| Component | Function |
| Cup Head Square Neck Bolt | Secures moving knives and knife guards |
| Hex Head Bolt | Secures hold-down clips and cutter beam |
| Standard Spring Washer | Prevents loosening under vibration |
| Hexagon Nut, Style 1 | Fastening connection |
| Plain Washer | Distributes pressure |
| Bearing 6302 | Supports rotation of ball joint component |
Common Faults and Replacement Signals of Cutter Assembly
| Fault Symptom | Possible Cause | Components to Check |
| Uneven stubble, missed cutting | Moving knives worn and blunt, excessive knife guard clearance | Moving knives, knife guards, hold-down clips |
| Straw tearing, knife jamming | Excessive or insufficient clearance between moving knives and knife guards | Hold-down clips, knife guards |
| High cutting resistance, high fuel consumption | Blunt moving knives, deformed cutter beam | Moving knives, cutter beam |
| Excessive cutter vibration | Bent cutter beam, worn ball joint components | Cutter beam, ball joint components |
| Moving knife breakage | Impact with stones, material fatigue | Moving knives |
| Knife guard breakage or deformation | Impact with hard objects, insufficient material strength | Knife guards |
| Cutter beam breakage or bending | Overload, impact with hard objects | Cutter beam |
How to Choose the Right Cutter Assembly Replacement Parts
Different brands and models of cutter assemblies differ in mounting dimensions, number of blades, and knife guard spacing. Before purchasing, be sure to purchase according to the specific machine model and harvester part number.
Confirm Model and Header Width
Harvester brand and model (e.g., Kubota DC35, Yanmar AW70V, Lovol RG130EVO)
Header width (2.0m, 2.5m, etc.)
Part number (OEM number) of the cutter assembly
Confirm Replacement Scope
| Replacement Scope | Contents | Applicable Scenario |
| Single moving knife | Single blade | Local wear |
| Knife guard | Single or complete set of knife guards | Knife guard wear or breakage |
| Hold-down clip | Hold-down clip and fasteners | Clearance adjustment failure |
| Cutter assembly | Cutter beam + moving knives + knife guards + hold-down clips + ball joint | Complete replacement |
| Cutter beam | Cutter beam and mounting accessories | Cutter beam bending or breakage |
Confirm Blade Material and Process
| Material | Heat Treatment Process | Hardness | Applicable Scenario |
| 45# steel | Medium-frequency hardening | HRC 45-52 | Conventional working conditions |
| 40Cr | Carburizing and hardening | Surface HRC 58-62 | Heavy-load operations |
| 42CrMo | Carburizing and hardening | Surface HRC 58-62 | Large harvesters, extreme conditions |
| 65Mn spring steel | Quenching + tempering | HRC 48-56 | General-purpose blades |
Confirm Key Dimensions
Cutter beam length and mounting hole positions
Number of moving knives (29 pcs + 2 half blades in the catalog)
Knife guard spacing and mounting hole spacing
Ball joint component specifications
Hold-down clip thickness and mounting method
Why Choose Maikeyier for Cutter Assemblies?
The cutter assembly is one of the most frequently replaced components on the header. When purchasing, three things are most feared: blades that are not wear-resistant, inaccurate knife guard clearance, and inability to source all parts from multiple suppliers. Maikeyier addresses these three pain points from source factory to supply chain integration.
| Procurement Pain Point | Maikeyier’s Response |
| Short blade life, easy chipping | Moving knives and knife guards are produced by our own forging factory. 45#, 40Cr, and 42CrMo are die-forged with complete metal flow lines, impact-resistant and wear-resistant |
| Inadequate heat treatment, uneven hardness | Processes are matched to material and working conditions: 45# medium-frequency hardening, 40Cr/42CrMo carburizing and hardening. Hard surface, tough core, wear-resistant edge that does not chip |
| Scattered parts, troublesome multi-supplier purchasing | Moving knives, knife guards, hold-down clips, cutter beam, ball joint components, and fasteners are supplied in one stop, completing cutting system procurement in one order |
| Uncertain about model compatibility | Covers mainstream harvesters such as Kubota, Yanmar, Lovol, and FMWorld; matching by model, OEM number, or photo |
| Afraid of bulk inventory pressure | MOQ 200 pcs; sample orders supported to verify quality first, then bulk orders |
Maikeyier — Forging factory origin, one-stop supply for harvester cutter assemblies and parts. Moving knives, knife guards, hold-down clips, cutter beam, ball joint components — all from one supplier. Send your harvester model, header width, OEM part number, or old cutter photos to our email, and Maikeyier will provide a quotation with specification options within 24 hours.
