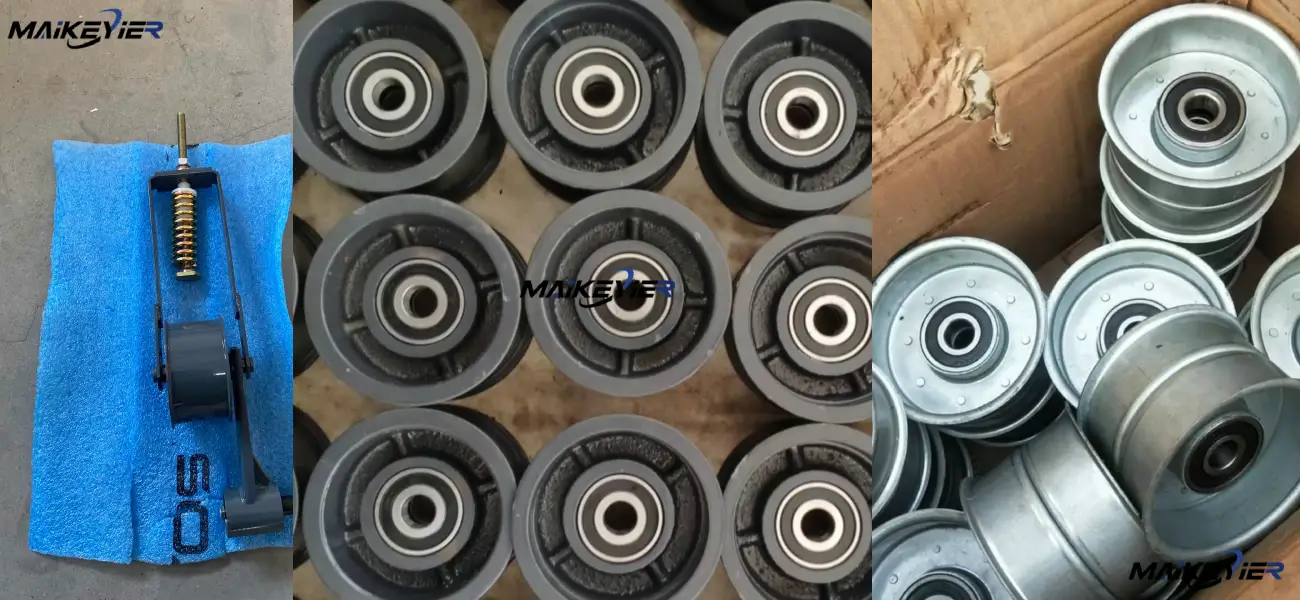

In the undercarriage travel system of a tracked combine harvester, the Tensioner Arm and the Tensioner Wheel Assembly are two components that are often confused with each other. They are mounted side by side on the track frame, are usually replaced at the same time, and many dealers list them together in the same RFQ line. But they are two completely different parts, with different failure causes and different quotation methods. If the model or component is mistaken, not only will it not fit, but it will also cause track tension failure, deviation, derailment, and even damage to the drive sprocket and track rollers.
What Is a Combine Harvester Tensioner Arm?
The Tensioner Arm is the supporting and force-applying structural component in the track tensioning device. One end is connected to the undercarriage frame or tensioning mechanism, and the other end mounts the tensioner wheel. Through the action of a spring or hydraulic cylinder, it pushes the tensioner wheel against the track, thereby adjusting and maintaining track tension.
Composition of the Tensioner Arm
| Component | Description |
| Arm body | Main structure, bears tensioning force and impact loads |
| Wheel shaft | Supports tensioner wheel rotation |
| Bearing / bushing | Reduces friction, ensures smooth wheel rotation |
| Seal | Prevents mud and water from entering the bearing cavity |
| Tensioning structure | Spring type or hydraulic type, provides tensioning force |
| Mounting holes / bracket | Connects to the undercarriage frame |
Common Materials for Tensioner Arms
| Material | Features | Applicable Working Conditions |
| Cast steel | High tensile strength, good impact toughness | Heavy-duty, high-impact, large harvesters |
| Q355 steel plate welded | Controllable cost, strength meets standard conditions | Small and medium harvesters, standard operations |
| QT450 ductile iron | Cost-effective, flexible casting | Conventional paddy field operations |
What Is a Combine Harvester Tensioner Wheel Assembly?
The Tensioner Wheel Assembly is the rotating component in the tensioning device that directly contacts the track. It is mounted on the tensioner arm, guides the track through wheel body rolling, and works with the tensioner arm to maintain track tension. On some models, the tensioner wheel also performs the function of the idler wheel, so it is also called the Idler Wheel Assembly.
Composition of the Tensioner Wheel Assembly
| Component | Description |
| Wheel body | Directly contacts the track, bears friction and load |
| Wheel shaft | Supports wheel body rotation |
| Bearing | Ensures smooth wheel rotation |
| Oil seal / seal | Prevents mud, water, and oil leakage |
| End cover / dust cover | Protects bearings and seals |
| Fasteners | Bolts, nuts, circlips, etc. |
Common Materials for Tensioner Wheels
| Material | Features | Applicable Working Conditions |
| QT450-10 / QT500-7 / QT600-3 ductile iron | Wear-resistant, economical | Conventional paddy fields, standard operations |
| 45# / 40Cr forged steel | High strength, impact-resistant | Heavy-duty, high-impact conditions |
Tensioner Arm vs Tensioner Wheel Assembly: Core Differences
| Comparison Aspect | Tensioner Arm | Tensioner Wheel Assembly |
| Function | Supports, applies force, adjusts tension | Rolls in contact with track, guides direction |
| Rotates? | Does not rotate (except at pivot point) | Rotates |
| Main forces | Tensioning force, impact loads | Friction, radial loads |
| Installation position | Mounted on the track frame | Mounted on the tensioner arm (via pivot pin) |
| Common failures | Deformation, cracks, pivot point wear | Wheel body wear, bearing damage, seal failure |
| Replacement frequency | Lower | Higher (wear part) |
| Price | Higher (structural part) | Depends on material |
| Can be replaced separately? | Yes | Yes |
| Common materials | Cast steel, Q355, QT450 ductile iron | QT450/QT500/QT600 ductile iron, 45#/40Cr forged steel |
How Do They Work Together?
The tensioner arm and the tensioner wheel assembly are installed in series. The tensioner arm is mounted to the track frame via a pivot pin, and the tensioner wheel assembly is bolted to the front end of the tensioner arm. When the actuating mechanism pushes the arm forward, the tensioner wheel also moves forward, tightening the track.
Force transmission path: Spring / cylinder / bolt → Tensioner arm → Pivot pin → Tensioner wheel shaft → Wheel rim → Track.
Shock absorption path: Track impact → Wheel rim → Wheel shaft → Bearing → Tensioner arm → Spring / accumulator (shock absorption).
Maintenance path: Add grease to the arm body (coil spring type) or check oil pressure (hydraulic type); add grease to the tensioner wheel assembly and check seals.
Common Failures and Replacement Judgement
When Should the Tensioner Arm Be Replaced?
| Judgement Standard | Description |
| Arm body deformation or cracks | Visible deformation, weld cracking |
| Severe pivot point wear | Excessive play at the connection, tensioning adjustment failure |
| Tensioning spring failure | Spring breakage or obvious loss of elasticity |
| Hydraulic cylinder oil leakage | Seal failure in the hydraulic tensioner arm cylinder |
| Mounting hole wear | Hole enlargement, insecure fixation |
When Should the Tensioner Wheel Assembly Be Replaced?
| Judgement Standard | Description |
| Severe wheel body wear | Outer diameter wear exceeds 1/3 of original size, or grooves worn into the rim |
| Bearing abnormal noise or sticking | Unsmooth rotation, noise |
| Seal failure | Oil leakage, or mud and water entering the bearing cavity |
| Wheel body cracks or chipping | Reduced strength, may fail at any time |
| Obvious increase in play | Noticeable wobble between wheel body and shaft |
How to Choose During Procurement? What Information Is Needed?
| Information Item | Description |
| Harvester brand and model | Kubota, Yanmar, Lovol, World, etc. |
| OEM part number | If available, enables fast and accurate matching |
| Component type | Tensioner arm / Tensioner wheel assembly / Tensioning assembly |
| Tensioning method | Spring type / Hydraulic type |
| Material requirement | Cast steel / Q355 / QT450 / QT500 / QT600 / 45# / 40Cr |
| Key dimensions | Arm length, mounting hole spacing, wheel diameter, shaft diameter, etc. |
| Order quantity | Sample / Small batch / Bulk / Full container |
| Destination country | To confirm packaging and shipping requirements |
What Can Maikeyier Supply?
Maikeyier is an agricultural parts supplier with forging manufacturing capability at its core. We provide one-stop undercarriage parts supply – tensioner arms, tensioner wheel assemblies, drive sprockets, track roller assemblies, track chains, track shoes, guides, pins and bushings can all be loaded in the same container by model. We also match new and old harvester models from the four major brands: Kubota, Yanmar, Lovol, and FMWorld.
