The reel tines developed and produced by Maikeyier support four mainstream materials:
65Mn spring steel, 70# carbon steel, 201 stainless steel, and 304 stainless steel,
covering the full range from economy, standard, to high-end anti-corrosion grades.
- 65Mn / 70# / 201 / 304
- RH & LH Dual-Rotation
- Kubota / Yanmar / World / Lovol
- 100% OEM Replacement
Materials
MOQ (PCS)
OEM Fit
Export Countries
Core Functional Advantages
Elastic curvature lifts lodged crops close to the ground, guiding straw to the cutter, reducing missed cutting and grain loss.
Double-torsion spring allows automatic retreat when encountering stones or clods, preventing tine breakage and header damage.
Even rebound and stable force ensure continuous, uniform pushing of straw into the auger — no jamming.
From economical carbon steel to food-grade stainless steel, all specifications available for different budgets and environments.
Supports galvanizing, powder coating, and electrophoretic coating for dry, humid, and coastal conditions.
Full range of wire diameters and lengths, compatible with most combine harvesters — direct replacement.
Materials & Specifications
| Material | Properties | Standard Sizes | Best Application |
|---|---|---|---|
| 65Mn Spring Steel | Quenched & tempered, excellent elasticity and toughness, fatigue-resistant | Φ4.5 / 5.0 / 5.5 / 6.0mm 210 / 260 / 300mm |
Heavy-duty, high-load continuous operations |
| 70# High-Carbon Steel | High hardness, good rigidity, low cost, basic wear resistance | Φ5.0mm main 210 / 260mm |
Cost-performance choice for repair shop bulk stocking |
| 201 Stainless Steel | Basic rust resistance, stable hardness, lower cost than 304 | Fully customizable | Humid fields, rainy season harvesting, mildly corrosive environments |

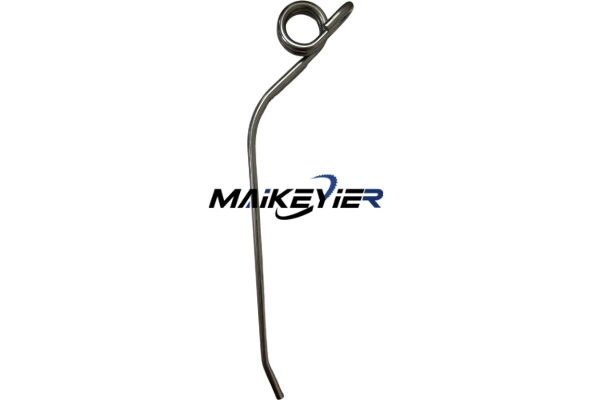

| 304 Stainless Steel | Food-grade, superior rust and corrosion resistance, longest service life | Fully customizable | Coastal high-salt fog, long-term humidity, high-end machines |
Wire Diameter Options
- Φ4.5mm — Light-duty for light rice/wheat
- Φ5.0mm — Standard universal, most widely used

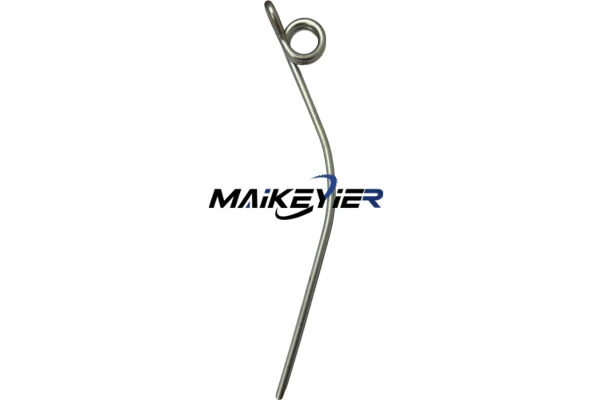

- Φ5.5mm — Kubota-specific original size
- Φ6.0mm — Heavy-duty reinforced for severe lodging
Coil inner diameter: 30mm (industry standard)
Length & Structure
- 210mm — Standard conventional harvesting
- 260mm — Extended for lodged / tall crops
- 290-300mm — Extra-long heavy-duty
Bending angle: 40-45°
Precision: ±0.5mm
Surface Treatment Options
| Process | Protection Level | Recommended Application |
|---|---|---|
| Electro-galvanizing | Basic rust protection | Inland dry environments |
| Powder coating | Thickened wear-resistant moisture protection | Overseas humid markets |
| Electrophoretic coating | Uniform coating, strong adhesion | Export orders with high appearance requirements |
| Blackening | Low-cost basic protection | Short-term inland operations |
RH / LH Structural Design

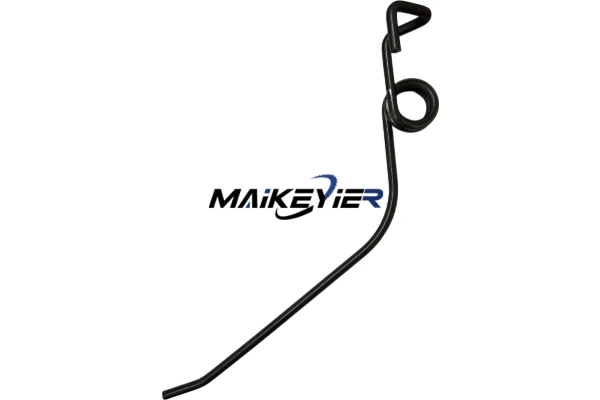

RH (Right-Hand) — Main Universal Type
Force principle: Right-hand wound spring; torque tightens the coil, maintaining stable spring force.
Primary use: Over 90% of lifting and guiding operations — central area of the reel.
Application: All conventional harvesting conditions. Main model with bulk stock.
LH (Left-Hand) — End-Position Dedicated
Force principle: Left-hand wound spring; counteracts centrifugal outward tension at reel ends.
Primary use: Only used at the left and right end positions of the reel — small quantity per machine.
Application: Essential for high-speed, large-area harvesting to prevent end tine detachment.
Compatible Brands & Models
Factory & Procurement
Whether you need 65Mn spring steel tines, 70# carbon steel economical tines,
201 stainless steel rust-resistant tines, or 304 stainless steel high-end anti-corrosion tines —
Maikeyier can provide high-quality, cost-effective reel tine solutions.
Contact us for a complete product catalog and targeted quotation.
